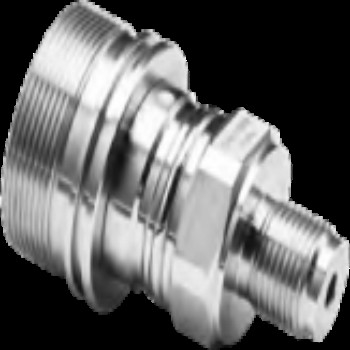

Μονοκρυσταλλικοί αισθητήρες πίεσης από πυρίτιο BW-DKS-CP300-S2 PA

  • BW-DKS-CP300-S2 PA-grade monocrystalline silicon pressure sensors
  • BW-DKS-CP300-S2 PA-grade monocrystalline silicon pressure sensors
  • BW-DKS-CP300-S2 PA-grade monocrystalline silicon pressure sensors
Τόπος καταγωγής Κίνα
Μάρκα BEWIS
Αριθμό μοντέλου BW-DKS-CP300-S2
Ποσότητα παραγγελίας min 1
Τιμή $98
Όροι πληρωμής Τ/Τ

Με ελάτε σε επαφή με δωρεάν δείγματα και δελτία.

whatsapp:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

Εάν έχετε οποιαδήποτε ανησυχία, παρέχουμε τη 24ωρη σε απευθείας σύνδεση βοήθεια.

x
Λεπτομέρειες
Πεδίο 6Kpa Προηγούμενη υπερφόρτωση 1Mpa
Μη γραμμικός ≤ 0,16% FS Συντελεστής θερμοκρασίας ≤ 0,3% FS/10K
Σημείο εξόδου 10mv/v Θερμοκρασία λειτουργίας -40~85°C
Αφήστε ένα μήνυμα
Περιγραφή προϊόντων

Ο αισθητήρας πίεσης BW-DKS-CP300 υιοθετεί ένα μονοκρυσταλλικό αισθητήρα πυριτίου που κατασκευάζεται από προηγμένη γερμανική τεχνολογία MEMS και το πρωτότυπο μονοκρυσταλλικό σύρμα διπλής δέσμης πυριτίου στον κόσμο.που επιτυγχάνει τις κορυφαίες διεθνείς επιδόσεις υπέρ πίεσης και εξασφαλίζει την εξαιρετική σταθερότητα του σήματοςΕνσωματωμένο με το έξυπνο αρχικό εισαγόμενο διάφραγμα μέτρησης πίεσης και τη μονάδα επεξεργασίας σήματος, συνειδητοποιεί τον τέλειο συνδυασμό στατικής πίεσης και αντιστάθμισης θερμοκρασίας,που μπορεί να παρέχει υψηλή ακρίβεια μετρήσεων και σταθερότητα υπό ευρύ φάσμα στατικής πίεσης και θερμοκρασίας.

Ο αισθητήρας πίεσης BW-DKS-CP300 είναι ένας αισθητήρας πίεσης που ενεργεί απευθείας στο διάφραγμα του αισθητήρα, προκαλώντας το διάφραγμα να παράγει μια μικρομετατόπιση ανάλογη με την πίεση,ανίχνευση αυτής της αλλαγής με ένα ολοκληρωμένο ηλεκτρονικό κύκλωμα και μετατροπή της εξόδου σε ένα τυποποιημένο σήμα μέτρησης που αντιστοιχεί στην πίεση.

Μονοκρυσταλλικοί αισθητήρες πίεσης από πυρίτιο BW-DKS-CP300-S2 PA 0

Μονοκρυσταλλικοί αισθητήρες πίεσης από πυρίτιο BW-DKS-CP300-S2 PA 1

Σχήμα Κωδικός προδιαγραφής Επεξήγηση
BW-DKS-CP300   Αισθητήρες πίεσης μονοκρυσταλλικού πυριτίου PA



Πεδίο

(Καψούλα)

S2 ·····························································································································································································································································

M1 ·····························································································································································································································································

Μ 2 ·····························································································································································································································································

M4 ·····························································································································································································································································

L1 ·················

L2 ························

6KPa

40 kPa

100 kPa

400KPa

4MPa

40MPa
Τρίχωμα σύνδεσης κελύφους

N00 ········

M45 ·····························································································································································································································································

G55 ·········································

M56 ·····································································································································

M27 ·····························································································································································································································································

- Όχι, όχι.

Δήμαρχος

G55*16 Νήμα

Διάταξη M56*1.5

Δήμαρχος



Διαφράγμα απομόνωσης

ΣΤ ·····························································································································································································································································

ΧC ································

ΤΑ ···············

ΓΔ ···············

SUS 316L

Hastelloy C-276

Ταντάλιος

SUS 316L Χρυσαφένιο
Υγρά πλήρωσης

Σ ······························································································································································································································································

Γ · ·····························································································································································································································································

Ο···································································································

Ελαιόλαδο πυριτίου

Φθοριούχο λάδι

Φυτικό έλαιο
Σύνδεση διαδικασίας

M20M ····························································································································································································································································

G12M ································

N12M ·········

N12F· ······································



M20 x1,5 Εξωτερική κλωστή

G1/2 Εξωτερική κλωστή

1/2NPT Εξωτερική κλωστή

1/2NPT Εσωτερικό νήμα
Τύπος πίεσης

- ·········

Α ··············································

Πίεση μετρητή

Απόλυτη πίεση
Πρόσθετες επιλογές Επικοινωνήστε με τις πωλήσεις.
